Graphene as a solid lubricant becomes super-slippery
Cnr Nano researchers studied the friction properties of graphene deposited on a material, identifying extreme lubricity conditions. The goal is to reduce friction in the design of nano gears through new solid lubricants

Cnr Nano researchers in collaboration with Sussex University and Rice University studied the frictional properties of graphene, deposited on micro and nano-textured silicon surfaces. Results could be relevant to improve the performance of nano and microelectromechanical systems.



Thanks to its extreme smoothness and high mechanical resistance, graphene thin films are of great interest in the field of micro- and nano-mechanics, where nanostructured devices are often susceptible to conditions of extreme pressure, friction, and adhesion. One of the most promising strategies to reduce friction effects, reduce wear and protect surfaces in contact at the micro and nanoscale level is based on the coating of the original materials with ultrathin lamellar sheet. For example, a single atomic layer of graphene is enough to reduce sliding friction by a factor of ten.



A team of researchers investigated how the sliding properties of graphene change when it is deposited on a nano-textured material, and identified how to obtain super-lubricity conditions. The research is a collaboration between Cnr Nano, Sussex University, Rice University, the University of Modena and Reggio Emilia and the University of Trento, and is now published in the journal Small.



In fact, in the field of tribology, textured surfaces with micro or nanoscale dimples, grooves, pillars, and other geometries are found to be interesting for tuning adhesion and friction forces. “The role of the substrate on which graphene is deposited is not passive, but fundamental to modulate the physical and electronic properties of the graphene film”, say Andrea Mescola of Cnr-nano and first author of the study. “The interplay between graphene and the textured substrate modifies the ideal characteristics of graphene and it can be used to control and regulate friction response and wear resistance”.



The reserachers emploied nanotextured silicon surfaces as substrates that mimic the cogs of a nanogear capable of inducing slight deformations in the graphene film deposited on them. They used friction force microscopy (FFM) measurements in ambient conditions to elucidate the effect of graphene deposition on the local friction properties. The reserachers evaluated the friction response as the density of the grooves and the direction of movement with respect to the grooves varied. “When graphene interacts with ‘corrugated’ substrates its atomic structure undergoes a specific re-arrangement in terms of compression and extension of the crystal lattice along the grooves of the substrate”, explains Guido Paolicelli, who coordinates this work for Cnr Nano. “Using both experimental and theoretical approach our study shows that the arrangement of the graphene lattice changes as the density of the grooves changes. In particular, on the sample with the highest grooves density the re-arrangement of graphene atoms produces a non-uniform response in terms of friction, i.e. there is a preferential sliding direction along which friction is extremely low, and super-lubricity conditions are reached “, continues the researcher.



This study demonstrates for the first time that parameters such as the compression and extension of the graphene coating induced by the substrate modify the mechanical response, in particular the friction of the system. A result that may have implications in the field of nanomechanics and nanorobotics, with the aim to optimize lubricating and anti-wear coatings by using graphene.



Mescola, A., Paolicelli, G., Ogilvie, S. P., Guarino, R., McHugh, J. G., Rota, A., Iacob, E., Gnecco, E., Valeri, S., Pugno, N. M., Gadhamshetty, V., Rahman, M. M., Ajayan, P., Dalton, A. B., Tripathi, M., Graphene Confers Ultralow Friction on Nanogear Cogs. Small 2021, 2104487. https://doi.org/10.1002/smll.202104487Cnr Nano

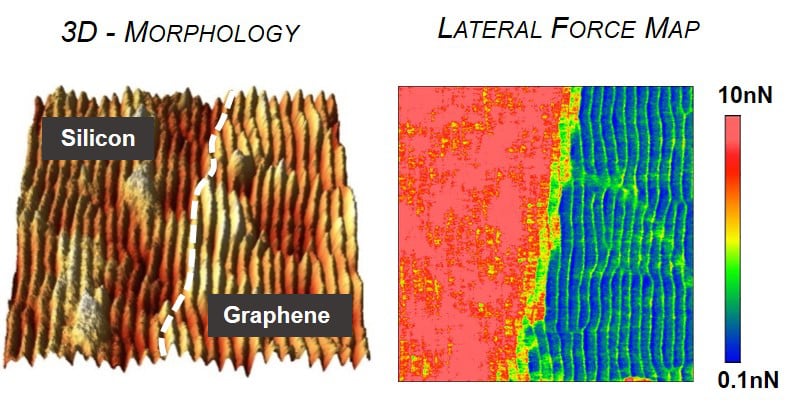

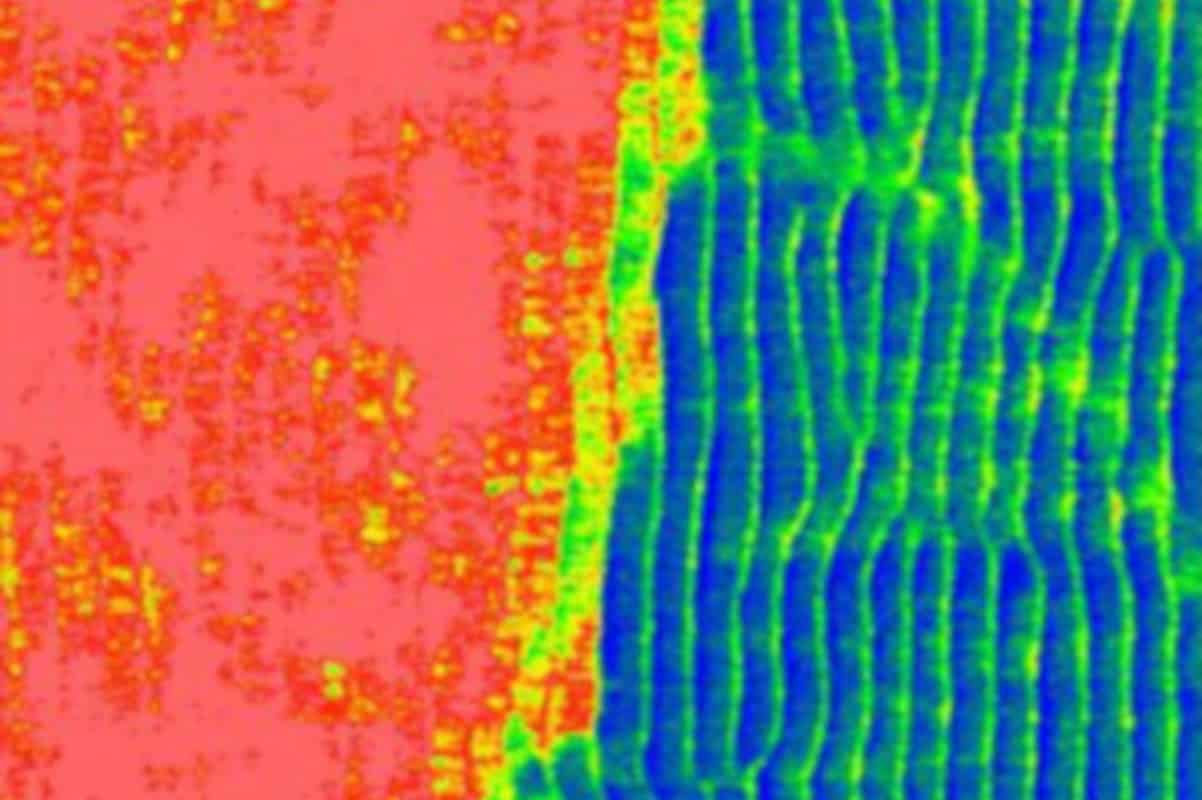

3D morphology and lateral force map acquired by Friction Force Microscopy (FFM) of P40-corrugated sample (size scan: 1.0 x 1.0 µm2)
